Fujifilm Ultrasonic Flowmeter Application in Semiconductor Industry
Date:2024-12-23 Show:2115


Located in Lingang New Zone of Shanghai Free Trade Zone, Shanghai Jita Semiconductor has a total investment of 35.9 billion yuan to build an 8-inch production line with a monthly production capacity of 60,000 pieces and a 12-inch feature process production line with 50,000 pieces, as well as a production base of Shanghai Xinsheng Semiconductor 300mm semiconductor silicon wafers. Two iconic semiconductor companies in Lingang have used Fujifilm Flow products in their water treatment processes, and have received unanimous praise from users.

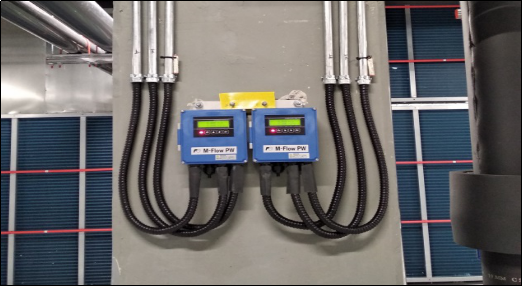

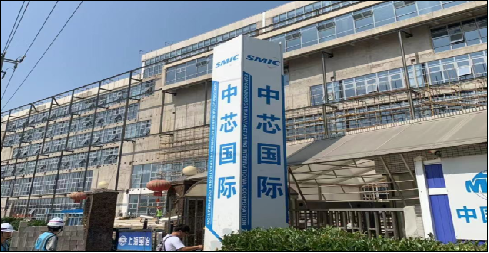

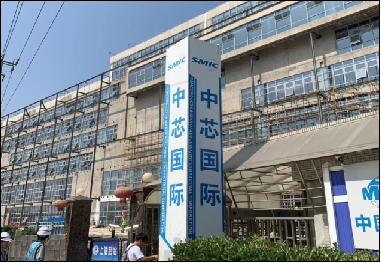

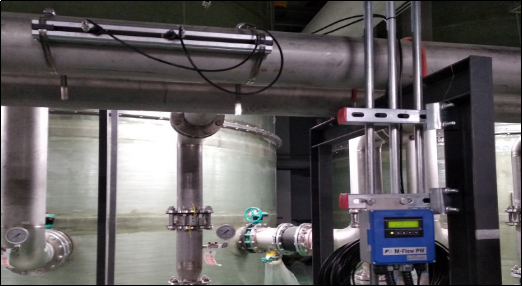

Smic Manufacturing Co., Ltd. is one of the world's leading IC chip foundry enterprises.Since the establishment of the plant in Shanghai in 2009, Fuji flowmeter has been used in the establishment of new plants in each region, involving multiple systems such as water treatment, power station, clean room, FMCS, etc., with stable operation and basically no maintenance during the 10 years.

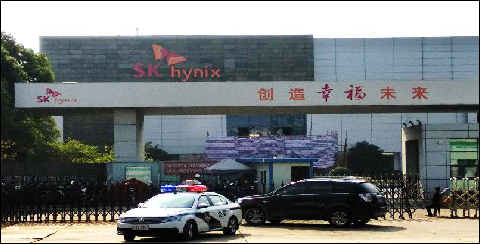

The Wuxi plant of SK Hynix, the world's second largest DRAM semiconductor manufacturer, and the Wuxi integrated circuit R&D and manufacturing base of Huahong with a total investment of $10 billion.
